IAU224
URBAN TRANSIT

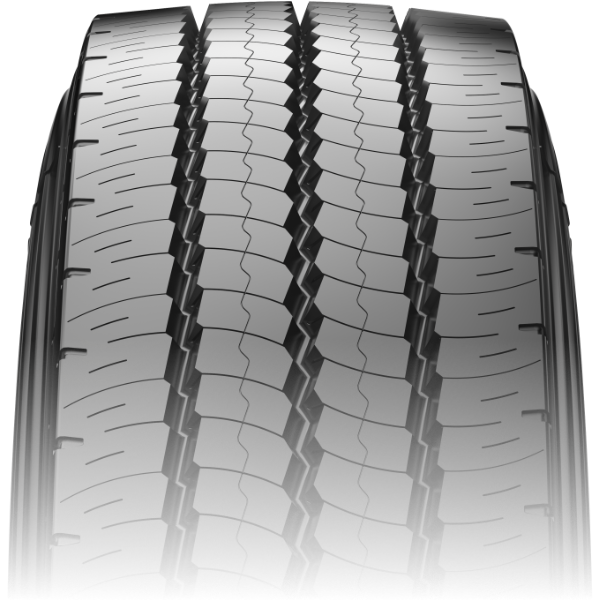

The IAU224 is an all position tire designed for on road applications. The broad 4-rib tread design provides precise handling and excellent stability. Circumferential grooves efficiently evacuate water from the tread area. Extensive siping improves wet and ice traction. The IAU224 is ideally suited for urban transit bus applications.
Gallery
Features
- Siped design for enhanced wet and ice traction.
- Solid shoulder ribs for improved handling and stability.
- Tread compound for extended wear in high scrub applications.
Applications
- Regional Buses
- City Transit
| Item # | Size | Ply | T.D. | L.I. 1X | L.I. 2X | SR | O.D. | S.W. | R.W. | L.C.C. 1X | L.C.C. 2X | AP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32nds | in. | in. | in. | lbs | lbs | psi | ||||||
| 1603040K | 305/70R22.5 | 20.00 | 22 | 153 | 150 | K | 39.4 | 12.0 | 9.00 | 8,050 | 7,390 | 130 |
