Gallery
IAR225
All-Position

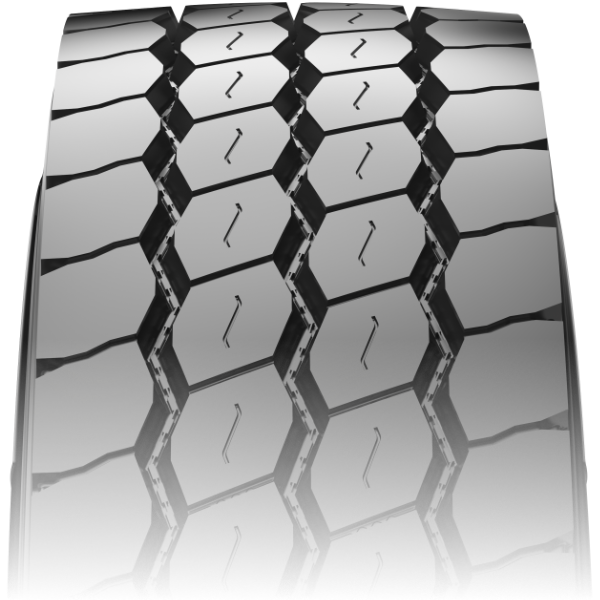

The Ironhead IAR225 is an all-position rib suitable for both on and off-road applications. The IAR225 was engineered with extended tread life in mind, and designed to deliver class-leading chip resistance. The IAR225 is best suited for waste fleets with severe high scrub applications.
Gallery
Features
- 270 mm tread width to maximize handling, stability and mileage.
- Solid shoulder delivers stability in all positions.
- Extra-deep tread design and unique compound for extended tread life.
- Durable heavy duty casing construction for excellent retreadability.
Applications
- Regional Trucks
- Dump Trucks
- Ready Mix Trucks
- Refuse Trucks
Downloads
| Item # | Size | Ply | T.D. | L.I. 1X | L.I. 2X | SR | O.D. | S.W. | R.W. | L.C.C. 1X | L.C.C. 2X | AP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32nds | in. | in. | in. | lbs | lbs | psi | ||||||
| 4123870 | 315/80R22.5 | 20.00 | 22 | 161 | 157 | K | 42.4 | 12.3 | 9.00 | 10,200 | 9,090 | 130 |
